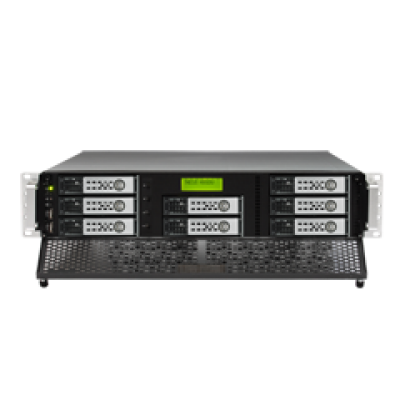

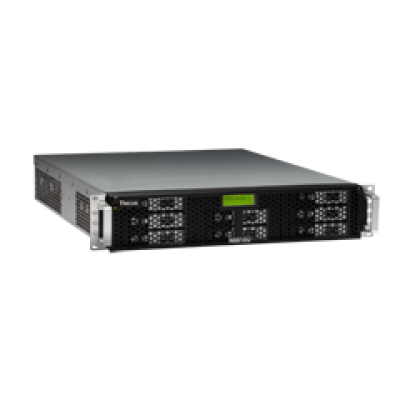

Thecus N8810U

Thecus N8810U
Thecus N8810U Thecus N8810U Thecus N8810U Thecus N8810U
Nhà sản xuất: Thecus
Mã sản phẩm: N8810U
Tình trạng: Còn hàng
Giá: 44.500.000đ
Số lượng:     - Hoặc -   Thêm Yêu thích
Thêm so sánh

1.Hardware Platform

Item Spec
Processor Intel® Pentium G850 (2.9GHz Dual Core)
System Memory 4GB DDR3 ECC Memory
LAN Interface (PCI-e) RJ-45x2: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported
USB Interface USB 2.0 host port x6 (front x2, back x4)
USB 3.0 host port x2 (back x2)
LCM Module Displays system status and information
10GbE NIC (Optional x1)

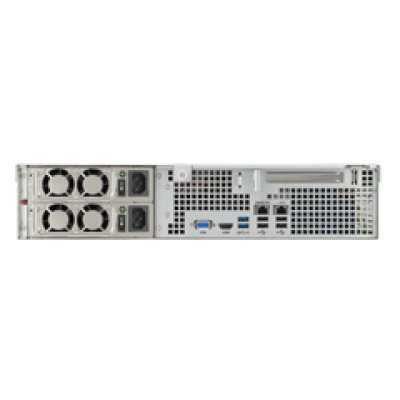

HDMI Output HDMI port (back x1)
VGA Output VGA port (back x1)
Disk Interface 8 x SATA for internal
Power Supply Redundant power supply 400W or more (80plus)
PCI-e x8 Slot 1
Thermal/Fan Control Thermal sensor on processor temperature
System Fan Hot Swappable (x4)
System Clock Battery-backed up system clock
Power Management Auto power on after shutdown due to power loss
Buzzer Adjustable frequency alarm
Buttons Power button
LCM button (ENT, ESC, UP, DOWN)
Environment Temperature: 5°C to 40°C
Humidity: 0 ~ 80 % R.H. (Non-condensing)
Chassis 2U Rack mount
Dimensions (HxWxD) 90 x 428 x 586 (mm)/3.54 x 16.85 x 23.07 (in)
Weight 15.88(kgs)/35.01(lb)(NAS only)
Certificates CE/FCC/C-Tick/VCCI/BSMI
RoHS
WEEE
VMware
Hướng dẫn sử dụng Xem tại đây

2. Software Functions

RAID
RAID Modes RAID 0, 1, 5, 6, 10, 50, 60 and JBOD
Auto-rebuild Supported
Hot-swap Supported
Hot Spare Supported
RAID Level Migration Supported
RAID Expansion Supported
RAID Volume Encryption AES256bit
Disk
Power Management Available spin-down while idle setting
Bad Block Scanning Supported
SMART Info Supported
SMART Test Supported
Disk Roaming Supports volume-based roaming to other Thecus NAS  (Require ThecusOS 5 64 bit )
Network
Configuration Fixed IP address, dynamic IP address
Transport Protocols TCP/IP/AppleTalk
File Protocols SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
Link Aggregation Load balance, Failover, 802.3ad,  Balance-XOR, Balance-TLB, Balance-ALB, Broadcast
TCP/IP IPV6 & IPV4
DDNS Supported
SSH Supported
UPnP Supported
UPnP Port forwarding Supported
System status
System Monitor Monitoring CPU, memory, network utilization and protocols access user count
Syslog Management Send syslog to assigned location
Act as syslog server to receive log info from other systems
Data Access
Client OS Support Windows XP and after
Windows Server 2003 and after
UNIX/Linux
Mac OS X
FTP Built-in FTP server with bandwidth control
Secure FTP Built-in secure FTP server with bandwidth control
TFTP Users can download and upload files with TFTP programs
Download Manager BitTorrent downloads (via Transmission Module)
NZB download (via NZB module)
Printer Server (IPP) Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks  (list/delete) via web user interface
Data Backup
Client Incremental Data Backup Acronis True image (OEM version)
Client System Disaster Recovery Acronis True image (OEM version)
Client Side Backup Software Thecus Backup Utility (Windows/Mac OS X)
Data Burn Create files to ISO image and burn to optical disc
Create files to ISO image
Read ISO image from optical disc and write to NAS
Mac OS X Time Machine Supported
Data Guard Remote Backup/Local Backup
Block Level Access

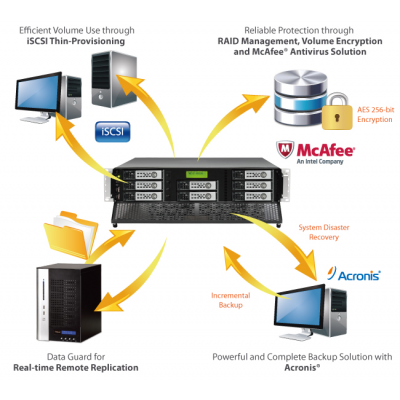

iSCSI Target/Initiator Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets
iSCSI Thin Provisioning Supported
MPIO Supported
MCS Supported
Clustering Supported
SCSI3 Persistent Group Reservation Supported
Power Management
Scheduled Power On/Off Supported
Volume Management
Multiple RAID Supported
Multiple File System Selectable EXT3/EXT4/XFS
Multimedia Support
iTunes Server Supports AAC, MP3 w/ID3 tag and WAV
Piczza!™ Photo Server (via module) Supports GIF, JPG (JPEG), BMP, PNG
Support EXIF display
Support slide show
Media Server Support uPnP AV streaming protocol (via Module)
User Authentication
Local User Supports built-in user accounts
Local Group Supports built-in user groups
Windows ADS Supported
LDAP Supported
Access Guard Supports Black & White list/IP Filter
Cloud Backup
DropBox Supported (via module)
ElephantDriver Supported (via module)
Amazon S3 Supported
File System
Type Journaling File System
Language Support Unicode Support
Authorization (ACL) “Read”, “write”, or “deny” privileges to individual users or groups in folders and sub-folders
User Quota Supported
Administration
User Interface Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese
Utility Program MS Windows Setup Wizard
Supports Windows XP and after
Mac OS X Setup Wizard
Email Notifications Sends system messages via email to the system administrator
SNMP Trap System information trap out
Mobile Applications (iOS/Android)
